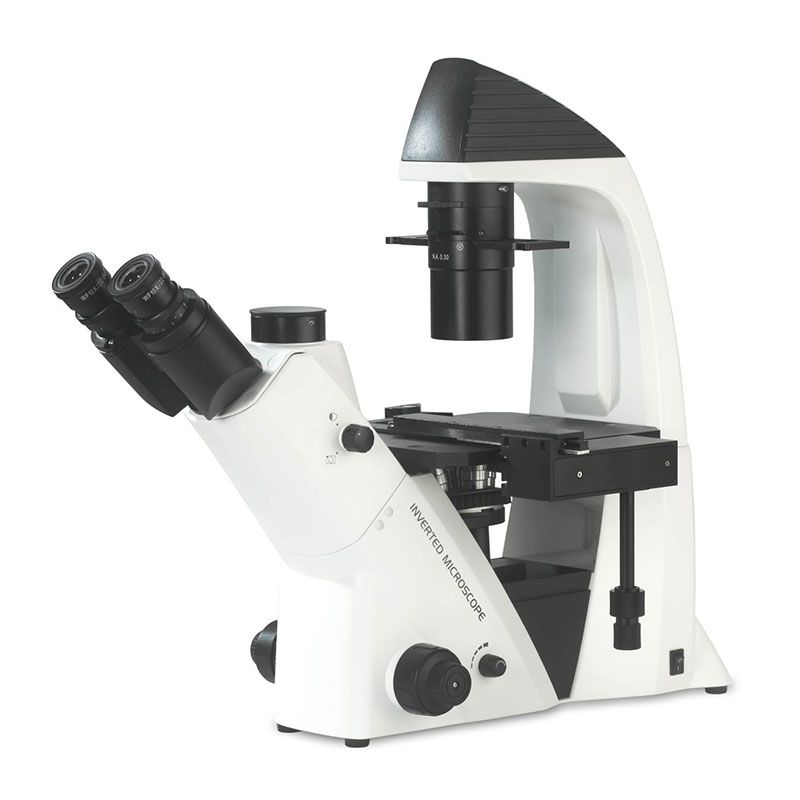

BDS400-FL Fluorescence Microscope
- Professional Laboratory instrument
- 40X~400X magnification, infinity optical microscope
- It satisfies phase contrast and bright field observation at the same time
- Observation is clear and the effect is good
- A semi-apochromatic objective lens can be specially configured
Click the button below to contact us:
Description

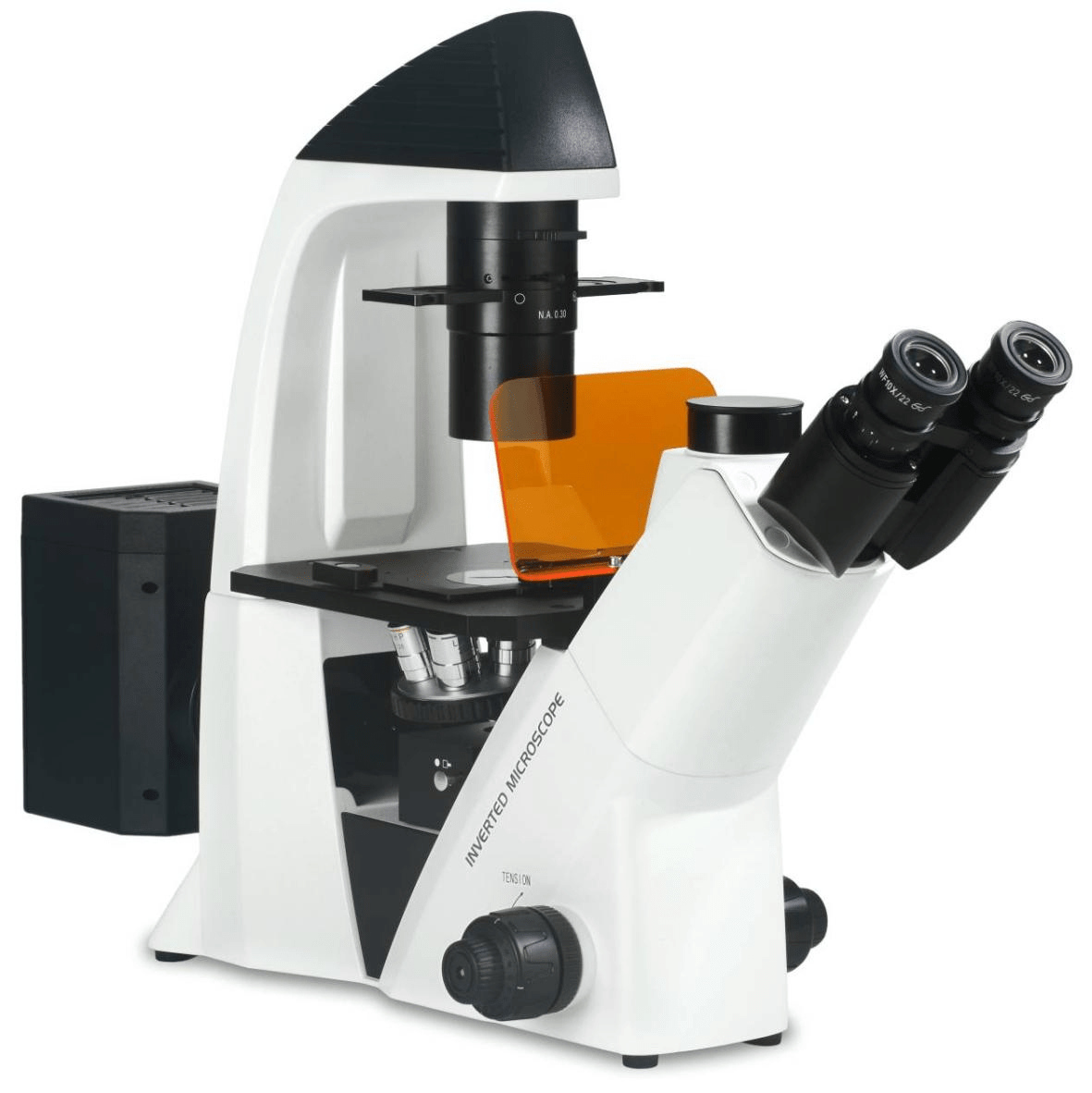

BDS400-FL fluorescence microscope is our best-selling biological laboratory microscope. The superior optical system, coupled with our EPI fluorescence device, can present good observation effects in the eyepiece. This fluorescence microscope can be installed with up to 4 sets of fluorescence filters, generally with four colors of filters B/G/Uv/V. There are two options for fluorescent light sources: mercury lamp and LED. You need to confirm clearly before purchasing.
This standard trinocular head can be used in conjunction with our digital camera. Inverted microscopes can be used to observe living biological cells. In addition to fluorescence observation, it can also be used for bright field observation and phase contrast observation. Powerful, one unit can realize three observation methods. A variety of accessories are available.
| Features of BDS400-FL Fluorescence Microscope
- It can also meet the requirements of fluorescence observation, bright field observation, and phase contrast observation.
- In addition to the standard objective lens, professional fluorescence objective lenses are also available.
- Inverted microscopes are more versatile and easier to operate. A variety of parameter configurations can be customized.
- N.A. 0.30 LWD condenser, Working distance: 72mm (with condenser), 195mm (without condenser)
- Large stage, Size: 240mm（X）× 210（Y）mm
- Mechanical Stage for 96 holes plate, Moving range: 128mm（X）× 80（Y）mm

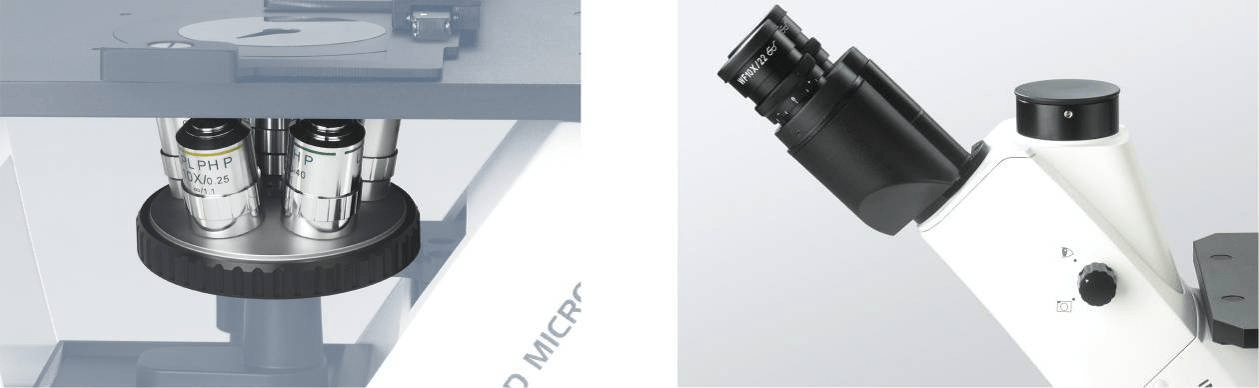

- Quintuple Nosepiece, equipped with L Plan FL PHP 10X/20X/40X objectives, which can be used for phase contrast observation.
- Light Distribution: Both 100:0 (100% for eyepiece) and 80:20 (80% for trinocular head and 20% for eyepiece).
| Culture Dish Holder of BDS400-FL Fluorescence Microscope
35mm
54mm
65mm
Blood Cell Counter
Glass Holder
Universal Holder
Knob can be changed by left or right
| Illumination of BDS Inverted Fluorescence Microscope
Regarding fluorescence light sources for fluorescence microscopes, there are two commonly available options: 100W mercury lamps and 5W LED lamps.
Under mercury light source, 1~4 groups of fluorescent filters can be added. There is no change in appearance.

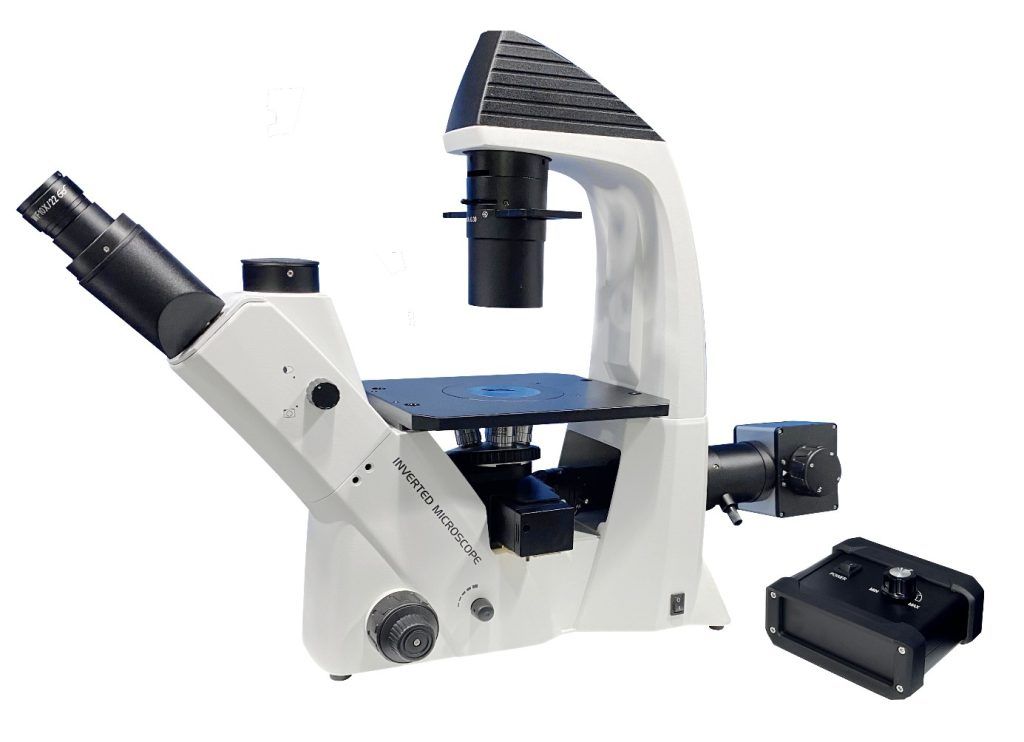

For LED light sources, groups 1 to 3 of fluorescent filters use our new integrated fluorescent device, and 4 group uses the previous style, as shown in the figure below.
| Objective Parameter List (Cover-glass thickness1.1mm)
| Objectives | N.A. | Working distance(mm) | |
| LWD Infinity Plan Objectives | Plan FL 2X | 0.06 | 7.2 |
| L Plan FL4X | 0.11 | 12.1 | |
| L Plan FL10X | 0.25 | 10.3 | |
| L Plan FL 20X | 0.45 | 5.8 | |
| L Plan FL40X | 0.65 | 5.1 | |
| L Plan FL 2X | 0.06 | 7.2 | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X (Both for Bright Field & Phase Contrast) | 0.1 | 9.2 |
| L Plan FL PHP 10X (Both for Bright Field & Phase Contrast) | 0.25 | 10.3 | |
| L Plan FL PHP 20X (Both for Bright Field & Phase Contrast) | 0.45 | 5.8 | |
| L Plan FL PHP 40X (Both for Bright Field &Phase Contrast) | 0.65 | 5.1 | |
| LWD Infinity Plan Fluor Objectives | L Plan Fluor 10x | 0.3 | 14 |
| L Plan Fluor 20x | 0.45 | 6.6 | |
| L Plan Fluor 40x | 0.65 | 3.9 |

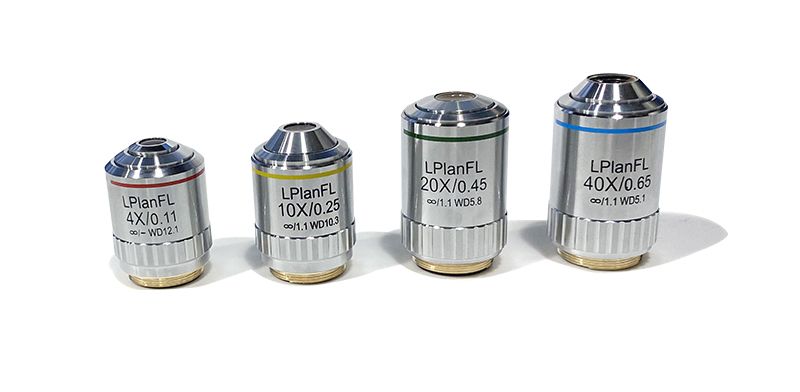

BDS400-FL Plan Objectives

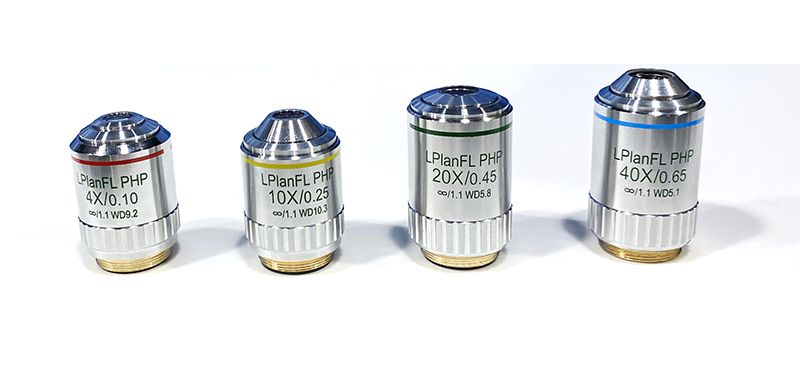

BDS400-FL Plan Phase Contrast Objectives
| BDS400-FL Fluorescence Microscope Size(mm)
| BDS400-FL Fluorescence Microscope General Layout Diagram
| BDS400-FL Fluorescence Microscope Outfits
| Item | Specification | Outfits | |
| Eyepiece | WF10×／22mm | ●● | |
| LWD Infinity Plan Objectives | L Plan FL 4X／0.11 | W.D.=12.1mm | ○ |
| L Plan FL 10X／0.25 | W.D.=10.3mm | ○ | |
| L Plan FL 20X／0.45 | W.D.=5.8mm | ○ | |
| L Plan FL 40X／0.65 | W.D.=5.1mm | ○ | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X／0.10(Both for Bright Field & Phase Contrast) | W.D.=9.2mm | ○ |
| L Plan FL PHP 10X／0.25(Both for Bright Field & Phase Contrast) | W.D.=10.3mm | ● | |
| L Plan FL PHP 20X／0.45(Both for Bright Field & Phase Contrast) | W.D.=5.8mm | ● | |
| L Plan FL PHP 40X／0.65(Both for Bright Field & Phase Contrast) | W.D.=5.1mm | ● | |
| Annular Spot | 10×/20×/ 40× | ● | |
| 4× | ○ | ||
| SeidentopfTrinocular Head | Inclined 45°, interpupilary distance: 48-76mmLight distribution (both): 100: 0（100% for eyepiece）80:20 (80% for trinocular head, and 20% for eyepiece) | ● | |
| SeidentopfTrinocular Head | Inclined 45°, interpupillary distance: 48-76mmLight distribution (both): 100: 0（100% for eyepiece）80:20 (80% for trinocular head, and 20% for eyepiece) | ○ | |
| Nosepiece | Quintuple | ● | |
| Mechanical Stage | Stage size: X×Y: 210×241mm, Round slide size: Φ110mm, Attached mechanical stage (available for 96 holes plate, moving range X×Y：128×80mm.) | ● | |
| Culture Dish Holder | 65mm | ○ | |
| 54mm | ● | ||
| 35mm | ○ | ||
| blood cell counter | ○ | ||
| Glass Holder | ○ | ||
| Universal Holder | ○ | ||
| Condenser | Long working distance, Quickly detachable, N.A.0.3, Working distance: 72mm (with condenser),195mm(without condenser). | ● | |
| Koehler Illumination | 12V/30W (universal voltage: 100V～240V) | ● | |
| 5WLED DC input (universal voltage：100V～240V) | ○ | ||
| Filter | Blue | ● | |
| Green | ● | ||
| Amber /Grey | ○ | ||
| C-mount | 1 X /0.5X /0.75X C-Mount (focus adjustable) | ○ | |
| Epi Fluorescence Illumination | Epi fluorescence media unit, field diaphragm, center adjustable. | ● | |
| 100W mercury lamp, 5WLED(input voltage:100V～240V) | ● | ||
| B, G, V, UV fluorescence filters can be chosen | ● | ||
| Infinity Fluorescence objective | L Plan Fluor 10X/0.3 | W.D.=10mm | ○ |
| L Plan Fluor 20X/0.45 | W.D.=6.6mm | ○ | |
| L Plan Fluor 40X/0.6 | W.D.=3.5mm | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs
| Epi Fluorescence Device
| China Fluorescence Flters Parameter List
| China Fluorescence Flters Parameter List | ||||
| Item | Exciter (nm) | Dichroic (nm) | Emitter (nm) | |
| Ultraviolet excitation | UV | 330-380 | 400 | 435 |
| Violet excitation | V | 380-420 | 430 | 460 |
| Blue excitation | B | 420-490 | 505 | 520 |
| Green excitation | G | 500-550 | 575 | 590 |
