Description
BK5000 Series Biological Microscope is the best-selling laboratory biological microscope in our factory. This microscope adopts an infinity optical system, Plan objective lens, and wide field eyepiece. The configuration of this model is relatively complete, and a phase contrast device and fluorescence device can be added. The observation effect is excellent, equipped with Plan 4X/10X/20X/40X/100X objective lens to meet different magnifications. The BK5000 microscope model has a stable structure, and we have upgraded and improved this microscope many times. Now it has excellent performance and can meet the parameter requirements of most laboratories on the market.
| Features of BK5000 Series Biological Microscope
- Quintuple Turrent Phase Contrast Device（Equipped with phase contrast 4X/10X/40X/100X objective. For both bright field and phase contrast.)

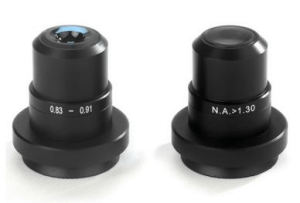

- Dry dark field condenser ( For 4X~40X objective).
- Wet dark field condenser ( For 100X objective).
- Independent Phase Contrast Unit (10X/20X/40X/100X).
- Plan Objectives Infinity.
BK5000 Binocular
BK5000TR Trinocular
| Components of BK5000 Series Biological Microscope
- Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase contrast and bright field observation.
- Darkfield condenser (wet) available to 100X Objective.
- 10X/20X/40X/100X Independent Phase Contrast Unit.
- Infinity Plan Objectives
- Six-hole disk fluorescence unit, More fluorescence filters can be supplied
- Polarizer, analyzer for a simple polarizing unit.
| BK5000 Series Biological Microscope General Layout Diagram
| Specifications of BK5000 Series Biological Microscope
| Items | Specification | Outfits | |
| Eyepiece | WF10×／20mm (23.2mm) | ●● | |
| Infinity Plan Objectives | PLAN 4×／0.10 | W.D.=12.10mm | ● |
| PLAN 10×／0.25 | W.D.=4.64mm | ● | |
| PLAN 20×／0.40(S) | W.D.=2.41mm | ● | |
| PLAN 40×／0.66(S) | W.D.=0.65mm | ● | |
| PLAN 100×／1.25(S, Oil) | W.D.=0.12mm | ● | |
| PLAN 2×／0.06 | W.D.=7.2mm | ○ | |
| PLAN 60×／0.80(S) | W.D.=0.33mm | ○ | |
| PLAN 100×／1.15(S, W) | W.D.=0.19mm | ○ | |
| Infinity Plan Semi Apochromatic Objective | UPlanFLN 10X/0.30 | W.D.=7.68mm | ○ |
| UPlanFLN 20X/0.50 | W.D.=1.96mm | ○ | |
| UPlanFLN 40X/0.75 | W.D.=0.78mm | ○ | |
| UPlanFLN 100X /1.30 (Oil) | W.D.=0.15mm | ○ | |
| Seidentopf Binocular Head | Inclined 30°, Rotatable 360°, Interpupilary Distance:48mm-75mm | ● | |
| Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm, Light Distribution: 100: 0 (100% light for eyepiece or camera port) or 20:80 (80% for eyepiece and 20% for camera port) | ○ | |
| Nosepiece | Quintuple | ● | |
| Mechanical Stage | Stage Size: 175mm×145mm,Travel: 78mm×55mm Coaxial Coarse and Fine Focusing Knobs Two Slide Holder | ● | |
| Integrated stage, Stage size: 182 mm×140mm, Travel range: 77mm×52mm, Two-slide holder | ○ | ||
| Condenser | Abbe N.A. 1.25 with iris diaphragm. | ● | |
| Swing Out Condenser, N.A. 0.9/0.13, with iris diaphragm. | ○ | ||
| Koehler Illumination Wide voltage input: 100V～240V Field diaphragm, center adjustable | 12V/20W Halogen Lamp | ○ | |
| 12V/30W Halogen Lamp | ○ | ||
| 3W-LED Illumination (DC input) | ● | ||
| Filter(Φ45mm) | Blue | ○ | |
| Green /Amber /Grey | ○ | ||
| C-mount | 1×/0.35X/0.5×/0.75×C-mount (focus adjustable) | ○ | |
| Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | |
| Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ○ | ||
| Phase Contrast Unit | Quintuple hole turret 10× /20× /40× /100× phase contrast objective | ○ | |
| Independent slot 10× /20× /40× /100× phase contrast objective | ○ | ||
| Dark Field Unit | Dark field condenser (dry), apply to 4×- 40× objective | ○ | |
| Dark field condenser (wet), apply to 100× objective | ○ | ||
| Polarizing Attachment | Analyzer / Polarizer | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 542mm×265mm×355mm Gross Weight: 12 kgs Net Weight: 10kgs
BK5000 Biological Microscope Size(mm)
BK5000 Fluorescence Microscope Size(mm)
| Factory
Our microscopes are all processed and produced in clean workshops. Microscope workshops include metalworking workshops, optical workshops, assembly workshops, assembly workshops, and packaging workshops. Our factory has more than 20 years of production experience, the performance of the microscopes produced is stable, and the configuration is constantly updated and optimized. Our factory has obtained various qualification certificates, such as ISO9001, CE, ISO14001 and so on.
