Description
BP20 biological microscope is a student-level instrument. It is a kind of biological microscope. This product has always been used in the previous microscope style. The function and performance are relatively stable. There are monocular and binocular types to choose from. The product adopts the finite-distance optical system. This is a basic biological microscope with a relatively favorable price. It can be matched according to the parameters in the table.
| Features of BP20 Biological Microscope
- Monocular head or binocular head. Inclined 45degree.

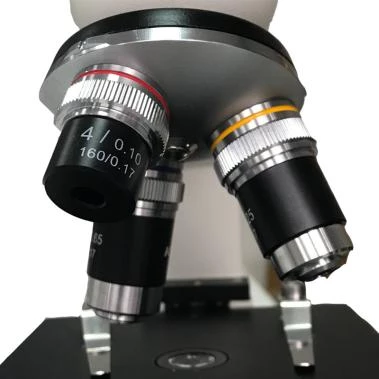

- Finite optical achromatic objectives. Standard 4X/10X/40X objectives.
- There are two different mechanical platforms to choose from.
| B20 Series Biological Microscope Outfits
| Item | Specification | BP20-1 | BP20-2 | BP20-3 | BP20-4 | BP20-5 | BP20-6 |
| Eyepiece head | Monocular,360°rotatable,45°inclined | ● | ● | ● | ● | ||
| Binocular,360°rotatable,45°inclined | ● | ● | |||||
| Eyepiece | WF10X-18mm | ● | ● | ● | ● | ● | ● |
| WF16X-13mm | ○ | ○ | ○ | ○ | ○ | ○ | |
| WF20X-11mm | ○ | ○ | ○ | ○ | ○ | ○ | |
| Achromatic objective | 4X/0.10 | ● | ● | ● | ● | ● | ● |
| 10X/0.25 | ● | ● | ● | ● | ● | ● | |
| 40X/0.65 | ● | ● | ● | ● | ● | ● | |
| 60X/0.85 | ○ | ○ | ○ | ○ | ○ | ○ | |
| 100X/1.25(oil) | ○ | ○ | ○ | ○ | |||
| Nosepiece | Triple nosepiece with positive click stopper | ● | ● | ||||
| Quadruple nosepiece with positive click stopper | ● | ● | ● | ● | |||
| Stage | 0.5W LED, Ni-Cd rechargeable battery pack,AC/DC adaptor, adjustable brightness | ● | ● | ● | ● | ||
| Built-in mechanical stage with specimens holder clips, controlled by coaxial coarse and fine knobs at low position Stage size:115mmX125mm | ● | ● | |||||
| Diaphragm | Disc diaphragm with five apertures | ● | |||||
| Iris diaphragm | ● | ● | ● | ● | ● | ||
| Condenser | N.A.0.65 single lens condenser | ● | |||||
| Under stage N.A.0.65 condenser | ● | ||||||
| Abbe N.A.1.25 | ● | ● | ● | ● | |||
| Illumination | Concave-plan mirror | ○ | ○ | ○ | ○ | ○ | ○ |
| 0.5W LED, Ni-Cd rechargeable battery pack, AC/DC adaptor, adjustable brightness | ● | ● | ● | ● | ● | ● |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
| BP20 Series Student Biological Microscope
| ltem | Specification | BP20-7 | BP20-8 | BP20-9 | BP20-10 | BP20-11 | BP20-12 |
| Eyepiece head | Monocular,360°rotatable,45°inclined | ● | ● | ● | ● | ||
| Binocular ,360°rotatable,45°inclined | ● | ● | |||||
| Eyepiece | WF10X-18mm | ● | ● | ● | ● | ● | ● |
| WF16X-13mm | ○ | ○ | ○ | ○ | ○ | ○ | |
| WE20X-11mm | ○ | ○ | ○ | ○ | ○ | ○ | |
| Achromatic objective | 4X/0.10 | ● | ● | ● | ● | ● | ● |
| 10X/0.25 | ● | ● | ● | ● | ● | ● | |
| 40X/0.65 | ● | ● | ● | ● | ● | ● | |
| 60X/0.85 | ○ | ○ | ○ | ○ | ○ | ○ | |
| 100X/1.25(oil) | ○ | ○ | ○ | ○ | |||
| Nosepiece | Triple nosepiece with positive click stopper | ● | ● | ||||
| Quadruple nosepiece with positive click stopper | ● | ● | ● | ● | |||
| Stage | Fixed metal stage with paired clips,controlled by coaxial coarse and fine knobs at low position Stage size:110mmX119mm | ● | ● | ● | ● | ||
| Built-inmechanical stage with specimens holder clips,controlled by coaxial coarse and fine knobs at low position | ● | ● |
| Package
BP20 series microscopes are packaged in cartons by default, the package size is 545*395*405mm, and the weight is about 6kg. If you need portable wooden boxes and aluminum alloy boxes, you can consult our sales staff in detail. Our BP20 series microscopes are small machines, that can be packed in individual cartons, or four small cartons can be packed into one large carton. You can choose according to your own packaging needs.
| Applications of BP20 Biological Microscope
This series is a student-level microscope, which can be used by students in school teaching, novice research, and some simple laboratory use. Our microscopes include low-level to mid-high-level equipment, mainly used in schools, hospitals laboratories, etc. There are many types, and the specifications can be matched according to the needs.
