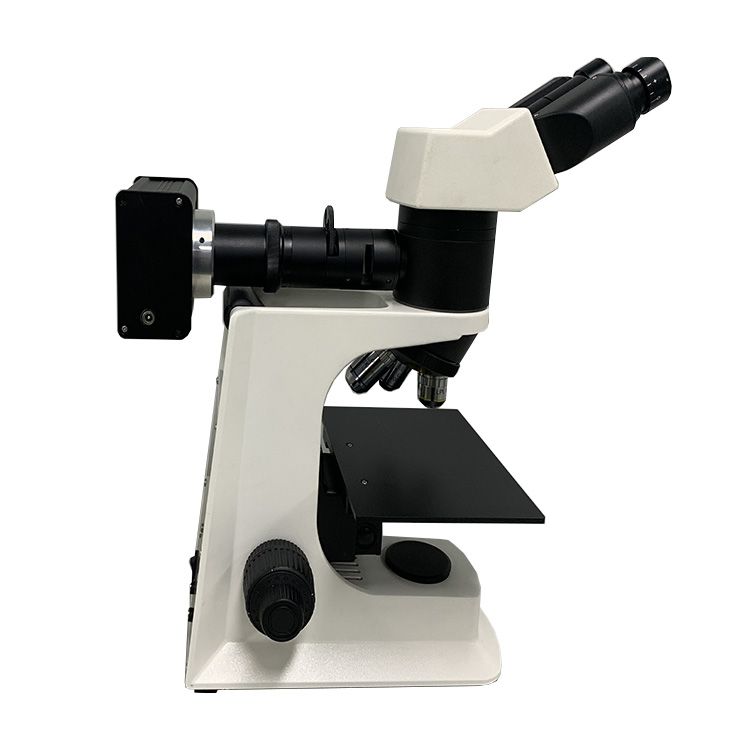

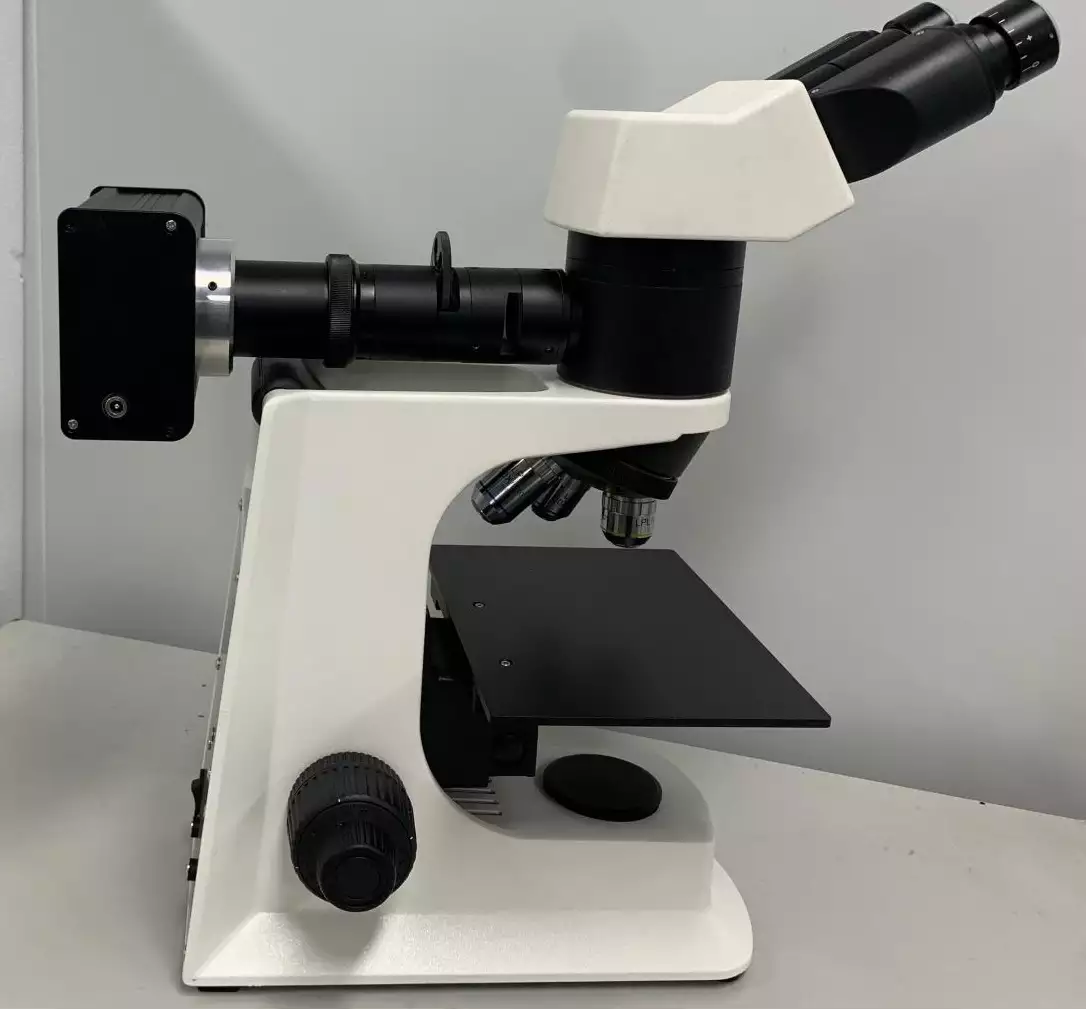

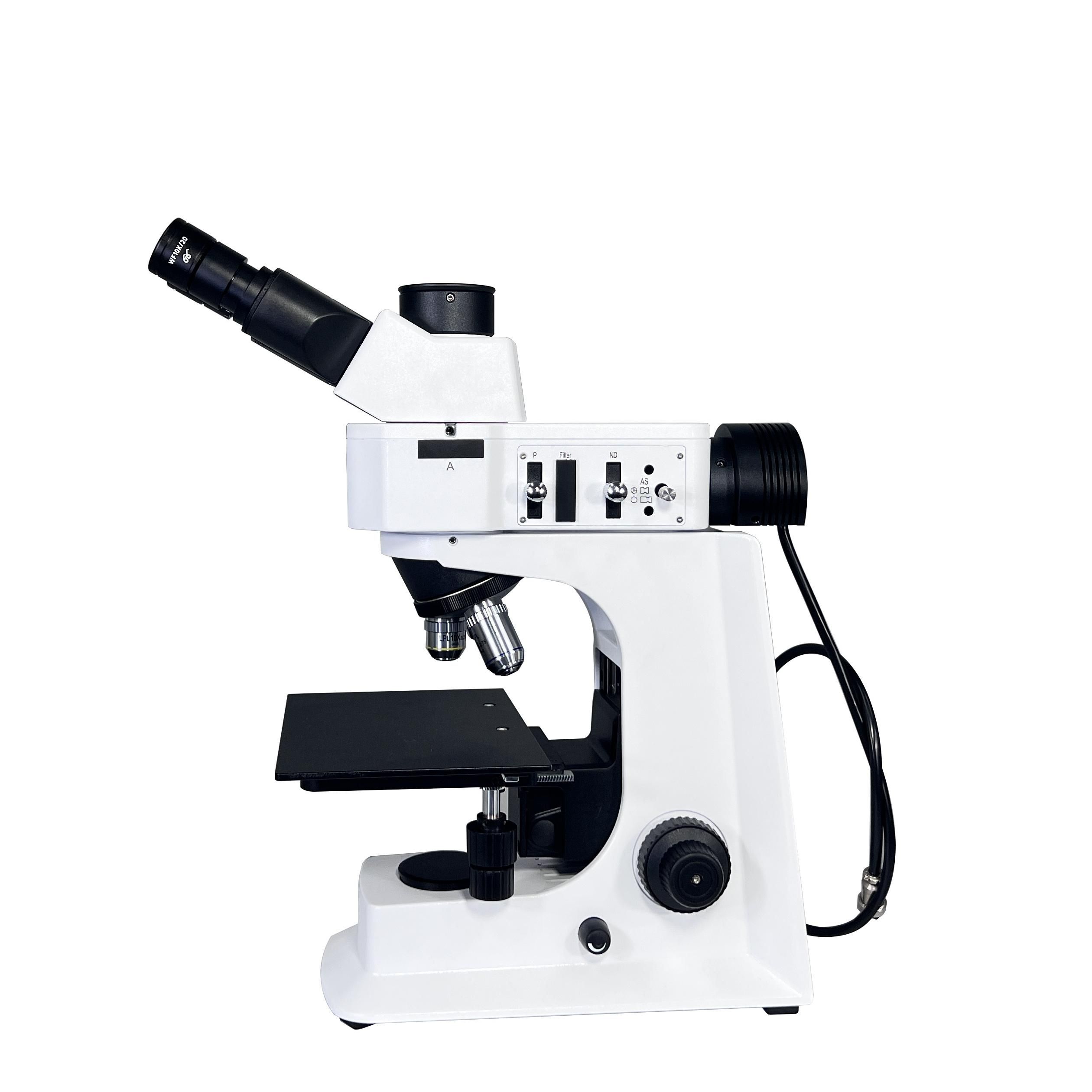

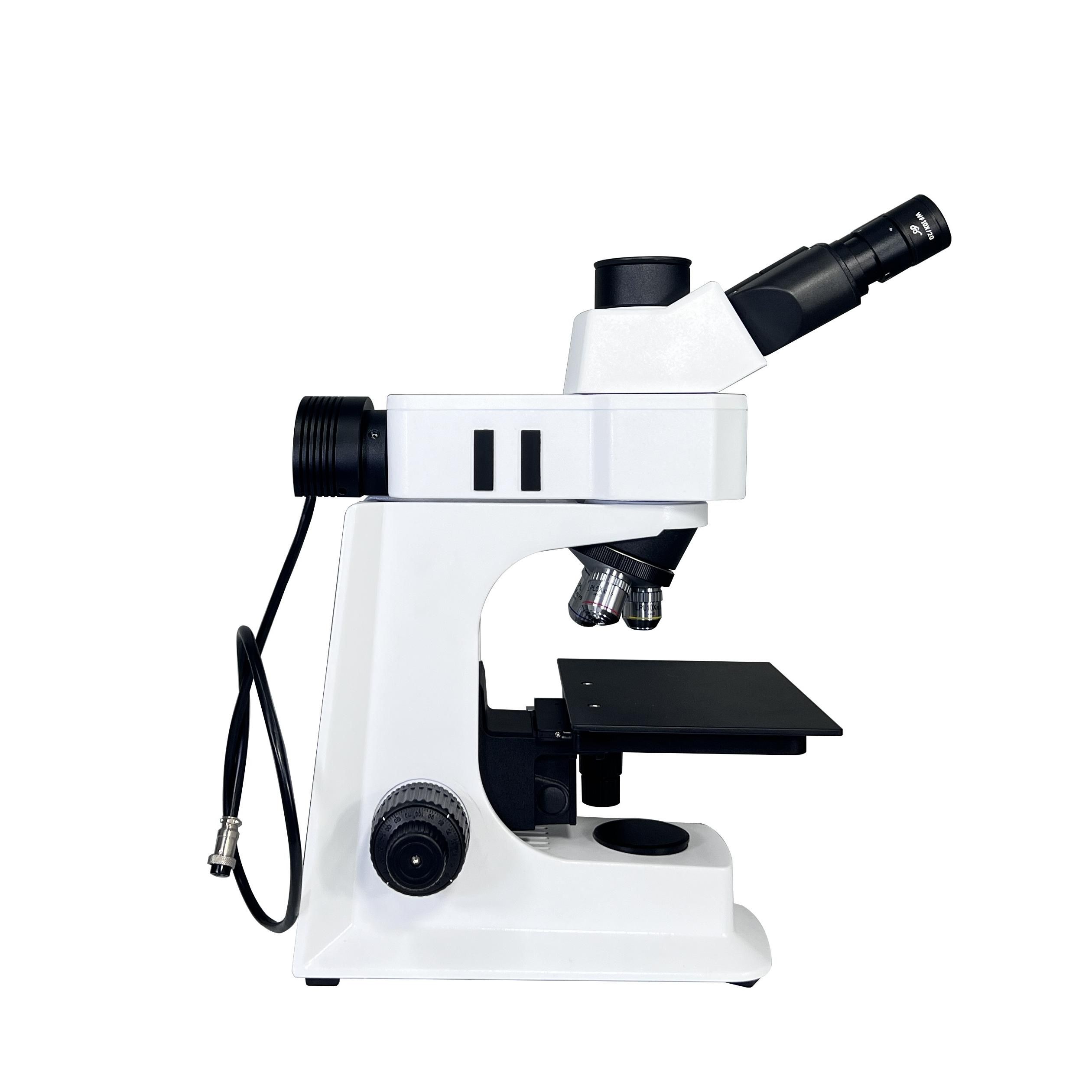

MIT200 Metallurgical Microscope
- Infinity optical system, binocular and trinocular
- Widely used in metal detection, metal material analysis
- 5V-12V low voltage input to ensure safe use
- The power bank can be used for power supply, more convenient for field inspection and power-short condition
Click the button below to contact us:
Description
MIT200 is a basic upright metallographic microscope that needs to be used with a polarizing device. The objective lens of this configuration is the long working distance LPL 5X/10X/50X objective lens. These three are standard, and other objective lenses are also available. This metallographic microscope has binocular and trinocular options. The binocular can only be observed with the eyes, and the trinocular can add a digital port to operate the measurement software on the computer. The metallographic microscope is used for qualitative and quantitative analysis of metal substances, material organization, etc. It is a precision instrument required for professional metallographic analysis. If you have any needs, you can contact us to inquire about the price.
| Features of MIT200 Metallurgical Microscope
- Butterfly-style rotating binoculars, 360° rotation. With ergonomically designed viewing angles, users can observe more comfortably.
- Low-voltage DC input, 5X~12V.
- The low-voltage mode design allows you to connect to a power bank anytime, anywhere. It breaks through the limitations of the use site.

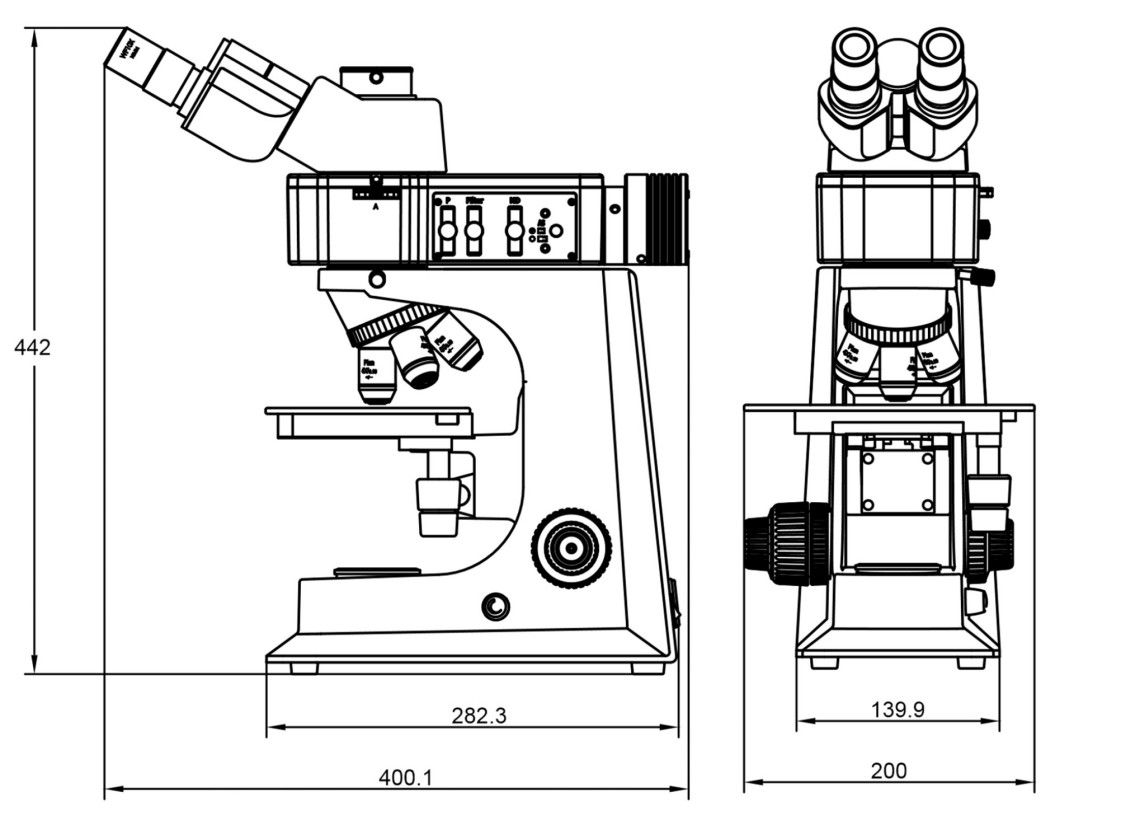

| MIT200 Metallurgical Microscope Size（mm）
| MIT200 Metallurgical Microscope Outfits
| Items | Specification | MIT200 | |
| Eyepiece | WF10X/20mm (High eyepoint) | ● | |
| WF10X/20mm(H, adjustable Focus,Reticule 0.1mm) | ● | ||

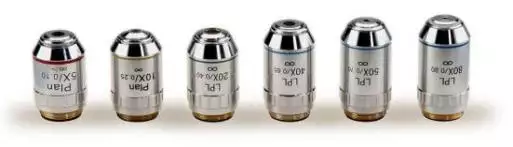

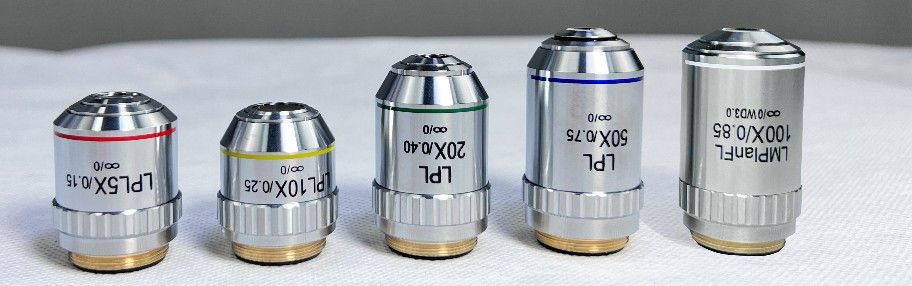

| Long Working DistanceInfinity Plan Objective(no cover glass) | LPL 5×/0.15 | W.D=15.00mm | ● |
| LPL 10×/0.25 | W.D=18.48mm | ● | |
| LPL 20×/0.4 | W.D=8.35mm | ○ | |
| LPL 50×/0.75 | W.D=2.55mm | ● | |
| LPL 80×/0.8 | W.D=0.85mm | ○ | |
| LMPlan FL 100×／0.85(Dry) | W.D=3.00m | ○ | |
| Swiveling Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mm | ● | |
| Swiveling Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mmLight Distribution 80:20 | ○ | |
| Nosepiece | Quadplex | ● | |

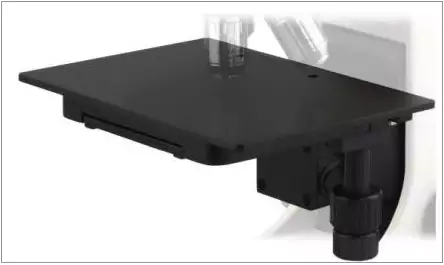

| Mechanical Stage | Stage Size: 200×140mm, Travel: 76mm×52mm Coaxial Coarse and Fine Focusing Knobs | ● | |
| Reflection Illumination | 5WLED lamp (Input voltage: 100V～240V) | ● | |
| Filter(Φ12) | Five-hole filter unit (blue, green, amber, grey, empty) | ● | |
| Polarizing Attachment | Analyzer/ Polarizer | ○ | |
| C-mount | 1×/0.5×/0.35×/0.75×（Focus Adjustable） | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 550mm×380mm×285mm Gross Weight: 10.5 kgs Net Weight: 8 kgs
| Advantages of Metallurgical Microscope
- High magnification: Metallurgical microscopes can achieve magnifications of up to 2000x, which allows for the detailed examination of microstructural features such as grain boundaries, precipitates, and inclusions.
- Versatility: Metallurgical microscopes can be used to examine a wide range of materials, including metals, ceramics, and polymers.
- Ease of use: Metallurgical microscopes are relatively easy to use, making them ideal for students and researchers alike.
- Affordability: Metallurgical microscopes are relatively affordable compared to other types of microscopes, such as electron microscopes.
