SMART Series Biological Microscope

SMART Series Biological Microscope is a teaching-level microscope.  It is a kind of biological microscope widely used in schools, laboratories, hospitals, clinics, and so on. This range of microscopes is divided into four distinct product lines. There are two categories of finite distance and infinite distance, and the difference between the achromatic objective lens and the Plan achromatic objective lens. Can be matched according to your own needs.

| Features of SMART Series Biological Microscope

SMART Series Biological Microscope has a square frame design, and a carrying device is designed on the back of the microscope for easy transportation. The lenses are all treated with anti-mold and anti-fog and have a long service life.

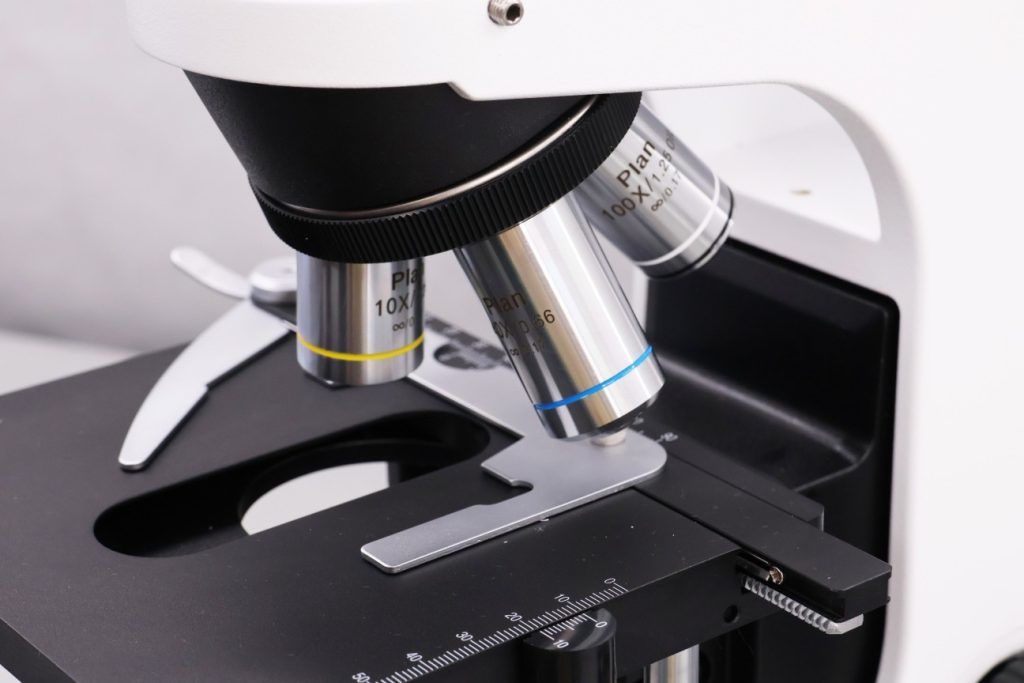

| Components of SMART Series Biological Microscope

| Specification of SMART Series Biological Microscope

Items	Specification	SMART-1	SMART-2	SMART-3	SMART-4
Eyepiece	WF 10X-18mm	●●
	WF 10X- 20mm		●●	●●	●●
Finity  Achromatic Objective	4X/0.10, WD=18.6mm	●
	10X/0.25, WD=6.5mm	●
	40X(S)/0.65, WD=0.47mm	●
	100X/1.25 (Oil) (S) /1.25, WD=0.07mm	●
Finity Plan Achromatic Objective	Plan 4X/0.10, WD=14.5mm		●
	Plan 10X/0.25, WD=5.65mm		●
	Plan 40X/0.65 (S)/0.65, WD=0.85mm		●
	Plan 100X/1.25 (Oil) (S)/1.25, WD=0.07mm		●
Infinity Achromatic Objectives	E-Plan4X/0.10, WD=12.1mm			●
	E-Plan10X/0.25, WD=4.14mm			●
	E-Plan40X (S)/0.65, WD=0.58mm			●
	E-Plan100X (Oil) (S)/1.25, WD=0.19mm			●
Infinity Plan Achromatic Objectives	Plan 4X/0.10, WD=12.1mm				●
	Plan 10X/0.25, WD=4.64mm				●
	Plan 40X (S)/0.66, WD=0.65mm				●
	Plan 100X (Oil) (S)/1.25, WD=0.12mm				●
	Plan 20X/0.40, WD=2.41mm			○	○
	Plan 60X (S)/0.80, WD=0.33mm			○	○
Butterfly Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm	●	●	●	●
Butterfly Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80	○	○	○	○
Nosepiece	Quadplex	●	●	●	●
	Quintuple	○	○	○	○
Mechanical Stage	Stage Size: 145 mm×140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder	●	●	●	●
	Rackless (Integrated) stage, size: 140×135mm,Travel range: 75×35mm, Two-slide holder	○	○	○	○
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	●	●	●	●
Illumination	3W-LED Illumination Systems (DC input)	●	●	●	●
	12V/20W Halogen Lamp	○	○	○	○
	12V/30W Halogen Lamp	○	○	○	○
Field Diaphragm		○	○	○	○
Dark Field Condenser	Dry, apply to 4X – 40X objective	○	○	○	○
Polarizing Attachment	Analyzer/Polarizer	○	○	○	○
Independent phase contrast unit	10X /20X /40X /100X			○	○

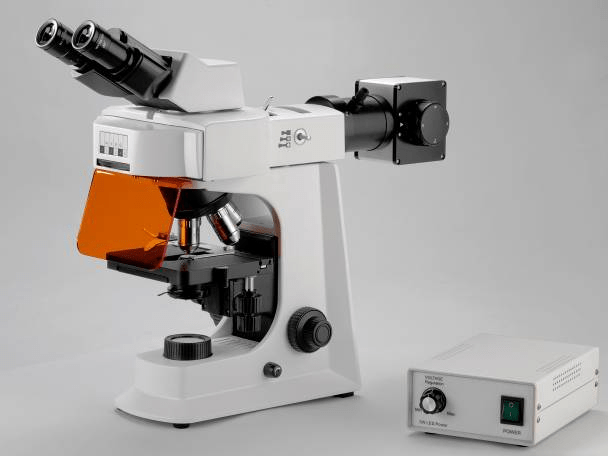

FluorescenceAttachment	Epi fluorescence unit (six-hole disc media which can be fixed with Uv/V/B/G),100W mercury lamp.			○	○
	Epi fluorescence unit (six-hole disc media which can be fixed with Uv /V/B/G), 5W-LED fluorescence lamp.			○	○
Filter	Blue /Green /Yellow/Grey	○	○	○	○
C-Mount	1X/ 0.35X/0.5X/0.75X （Focus adjustable）	○	○	○	○
Mirror		○	○	○	○

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

Packing Size: 550mm×380mm×290mm  Gross Weight: 7.5 kgs    Net Weight: 6.5 kgs
