XHB-3000 Digital Brinell Hardness Tester

  • The large screen directly displays the hardness value, conversion scale
  • Optional CCD image automatic measurement system
  • A test method with the largest indentation in all hardness tests

Click the button below to contact us:

Description

Brinell hardness test is a test method with the largest indentation in all hardness tests, which can reflect the comprehensive performance of materials. There are 3 types of Brinell Hardness Testers: DHB-3000, MHB-3000, and XHB-3000.

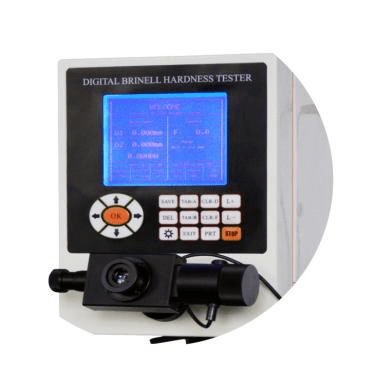

XHB-3000 digital Brinell hardness tester is a mechatronics product of microcomputer control closed-loop system and precise mechanical structure. The instrument cancels the weight, adopts electric loading and unloading test force, feedback from the pressure sensor with 0.5‰ precision, and is controlled by the CPU it can automatically compensate for the test force lost in the test. Digital Brinell hardness tester is connected with a digital display micrometer eyepiece, no need to look up the table, or key in the indentation length, the hardness value, test force, dwell time, indentation length, etc. can be directly displayed on the LCD screen, and you only need to press the eyepiece after measuring the indentation during operation press the button to automatically calculate the hardness value and display it on the screen. The reading is accurate and the operation is convenient.

| Applications of XHB-3000 Digital Brinell Hardness Tester

XHB-3000 digital Brinell hardness tester is suitable for the determination of the hardness of some non-metallic materials such as hard plastics and bakelite, and it is also suitable for the determination of the hardness of cast iron, steel, non-ferrous metals, and soft alloys.

YouTube video
Digital Brinell Hardness Tester XHB-3000 Hardness Testing

| Advantages of Digital Brinell Hardness Tester

  • Accuracy and precision: Digital Brinell hardness testers are more accurate and precise than traditional Brinell hardness testers. This is because digital testers use electronic sensors to measure the indentation diameter, which eliminates the possibility of human error.
  • Ease of use: Digital Brinell hardness testers are easier to use than traditional Brinell hardness testers. This is because digital testers have a user-friendly interface and require less training to operate.
  • Repeatability: Digital Brinell hardness testers are more repeatable than traditional Brinell hardness testers. This is because digital testers use a consistent load application and measurement process.
  • Versatility: Digital Brinell hardness testers can be used to test a wider range of materials than traditional Brinell hardness testers. This is because digital testers can apply a wider range of loads.
  • Data storage and retrieval: Digital Brinell hardness testers can store and retrieve hardness test data. This makes it easy to track trends and compare results over time.

| Technical Specification of XHB-3000 Digital Brinell Hardness Tester

ModelXHB-3000
Test Forcekgf62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
N612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
Test Range3.18～653HBW
Hardness ReadingLCD Display
Hardness Resolution0.01HBW
Conversion ScaleHV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS
Data OutputBuilt-in Printer, RS232 Interface
Microscope20× Digital Measuring Eyepiece, 1× Objective
Effective Field of View6mm
Min. Measuring Unit0.001mm
Dwell Time0~60s
Max. Sample Height215mm
Throat Depth135mm
Power SupplyAC220V, 50Hz
Execute StandardISO 6506, ASTM E10, JIS Z2243, GB/T 231.2
Dimension545×235×790mm, Packing Dimension: 650×435×1060mm
WeightNet Weight: 130kg, Gross Weight: 160kg

| Packing List of XHB-3000 Digital Brinell Hardness Tester

NameQtyNameQty
Instrument Main Body1 set20× Digital Measuring Eyepiece1 pc
Φ2.5mm, Ф5mm, Ф10mm  Ball Indentereach 1 pcΦ200mm Flat Anvil1 pc
Φ60mm Flat Anvil1 pcΦ80mm V-shaped Anvil1 pc
Hardness Block 150~250 HBW 10/30001 pcHardness Block 150~250 HBW 5/7501 pc
Fuse 2A2 pcsPower Cable1 pc
Inner Hexagon Spanner 2.5mm1 pcAnti-dust Cover1 pc
Usage Instruction Manual1 copy
