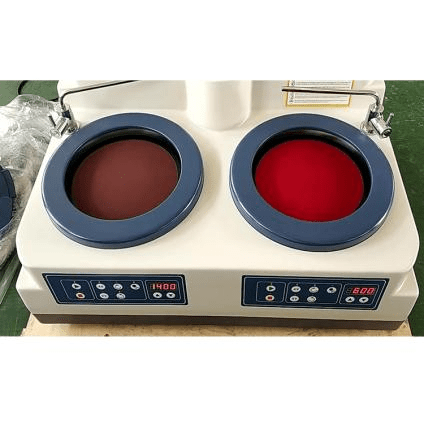

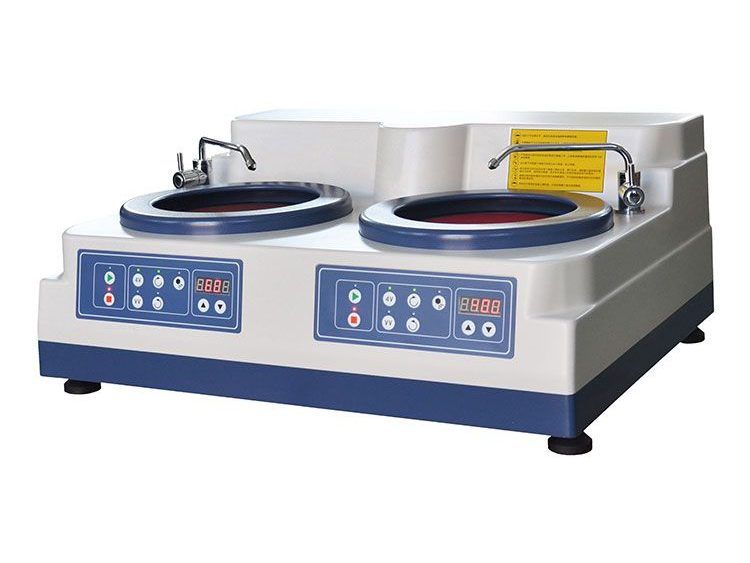

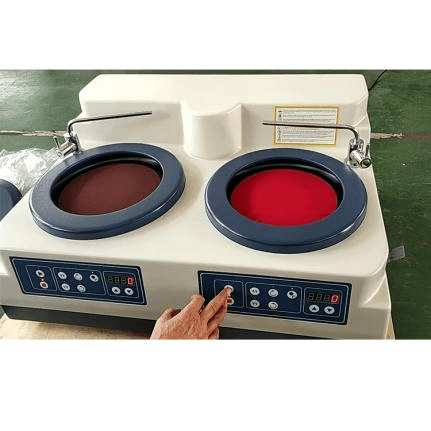

YMP-2 Metallographic Sample Grinding and Polishing Machine

  • Double disc design, grinding, and polishing can be operated independently
  • Applicable to all kinds of metallographic samples
  • The leak-proof design of the main shaft ensures that the bearings are hardly damaged; equipped with a cooling water pipe, it can be wet-grinded and rinsed to clean the grinding disc

Click the button below to contact us:

Description

| Features of YMP-2 Metallographic Sample Grinding and Polishing Machine

YMP-2 metallographic specimen grinding and polishing machine is a manual model, which adopts single chip microcomputer controlled grinding and polishing equipment, and double discs are independently controlled.

  • The diameter of the grinding disc is 230mm, and sandpaper can be selected.
  • There are two types of speed regulation: stepless speed regulation and four-speed speed regulation, which can be selected according to your needs.
  • The DC brushless motor extends the service life and reduces noise. The spindle has a leak-proof design to ensure safety in use.
  • Equipped with a bottom washing function of the grinding disc to prevent the accumulation and precipitation of grinding materials;
  • When using, you only need to replace the sandpaper and polishing cloth to complete the rough grinding, fine grinding, and polishing of various specimens.
YMP-2 1
ModelYMP-2
Disc Diameter230mm
Abrasive Paper Diameter230mm
SpeedStepless speed 100~1400r/min, or Four speeds 300, 600, 900, 1400r/min
Rotational DirectionClockwise or Counterclockwise
ElectromotorDC brushless motor, 220V, 600W

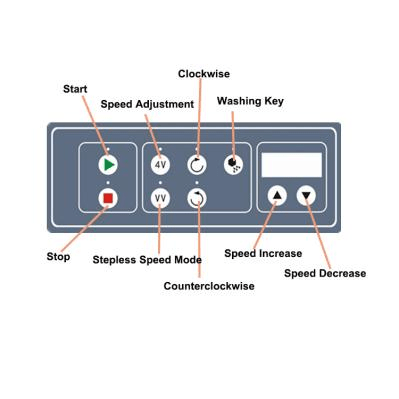

Control and DisplayFilm key operation , Nixie tube display, With washing function
Power Supply220V, 50Hz, 8A
Dimensions757×660×330mm
Net Weight57kg
YouTube video
YMP-2 Metallographic Sample Grinding & Polishing Machine

| Packing List of YMP-2 Metallographic Sample Grinding and Polishing Machine

NameSpecificationQty
Machine Body 1 set
Grinding and Polishing Disc230mm2 pcs
Ferrule 2 pcs
Abrasive Paper230mm6 pcs
Polishing Cloth230mm2 pcs
Water Inlet Pipe 1 pc
Water Outlet PipeΦ32mm2 pcs
Water Inlet Filter Screen 1 pc
Usage Instruction Manual 1 copy

| Advantages of Using the Metallographic Sample Grinding and Polishing Machine

  • Accuracy and Precision: Metallographic sample grinding and polishing machines can achieve very high levels of accuracy and precision. This is important because it allows the user to see the microstructure of the material in great detail.
  • Efficiency and Productivity: Metallographic sample grinding and polishing machines can be used to prepare samples quickly and easily. This is important because it allows the user to get results quickly.
  • Versatility: Metallographic sample grinding and polishing machines can be used to prepare a wide variety of materials, including metals, ceramics, and polymers.

| Why Choose Us?

  • Metallographic series products rely on decades of stable research and development teams, and professional consultants in the industry to develop and manufacture, and have many core metal patents for equipment.
  • It has ISO9001/ISO14001/ISO45001 certification and EU CE certification.
  • It also has cooperation with major domestic steel research institutes, colleges and universities, aviation automobiles, and leading enterprises in heavy machinery processing.
  • A complete machining workshop, more than 50 sets of various processing equipment such as CNC and numerical control machine tools, several sets of high-precision imported machining centers, and nearly 80 professional and technical workers.

| Delivery

The metallographic equipment we export is packed in wooden boxes. The packaging size of the YMP-2 metallographic sample grinding and polishing machine is 860*760*510mm, and the gross weight is 75kg. This product is relatively heavy, and it is more cost-effective to ship it by sea or air. We also accept freight forwarders to pick up the goods directly from the factory.

| FAQ

A1: We support T/T payments, or Western Union. You can communicate with us about other payment methods in detail.

A2: We provide one year of free after-sales service, during this period due to the machine itself caused by the parts damaged, we can provide free replacement parts. In addition, after-sales support is provided online.

A3: CE, ISO9001, ISO14001, ISO45001, ISO13485 and UKCA.

A4: There is no discount for a small order quantity. We can apply for a special price for a large order quantity.

A5: We can provide samples, if it is express, the transportation time will be about 2-3 weeks to get the product.
